News: Eiger4M tests at P10 (TngGui3.py for Eiger)

• Eiger4m Tests at P10:


  TriggerMode: ints, internal (software) trigger mode
  NbImages 100
  NbTriggers 1
  FrameTime 0.1


  Problem: detector becomes ON before all images have been taken.


    Expected sequence:
      #
      #   DET: ON, idle         FW ON, ready
      # arm()
      #   wait for det.status() == 'ready'
      #     DET: ON, ready        FW: MOVING, acquire
      # trigger()
      #     DET: MOVING, acquire, FW: MOVING, acquire
      #   wait for det.state() == ON
      #     DET: ON, idle         FW ON, ready

    first 'event': immediately after trigger() det.state() stayed ON, 'ready',
      FW: MOVING, 'acquire'

    second 'event': detector sends 'ready' too early, after 5 sec instead of 10.


  The first event may be considered as a problem of missed messages. The second event really should not happen.

  Possible solution: wait for the FileWriter to become on, like P08. Continue to make tests.

  To look at attributes and execute commands, use TngGui3.py:

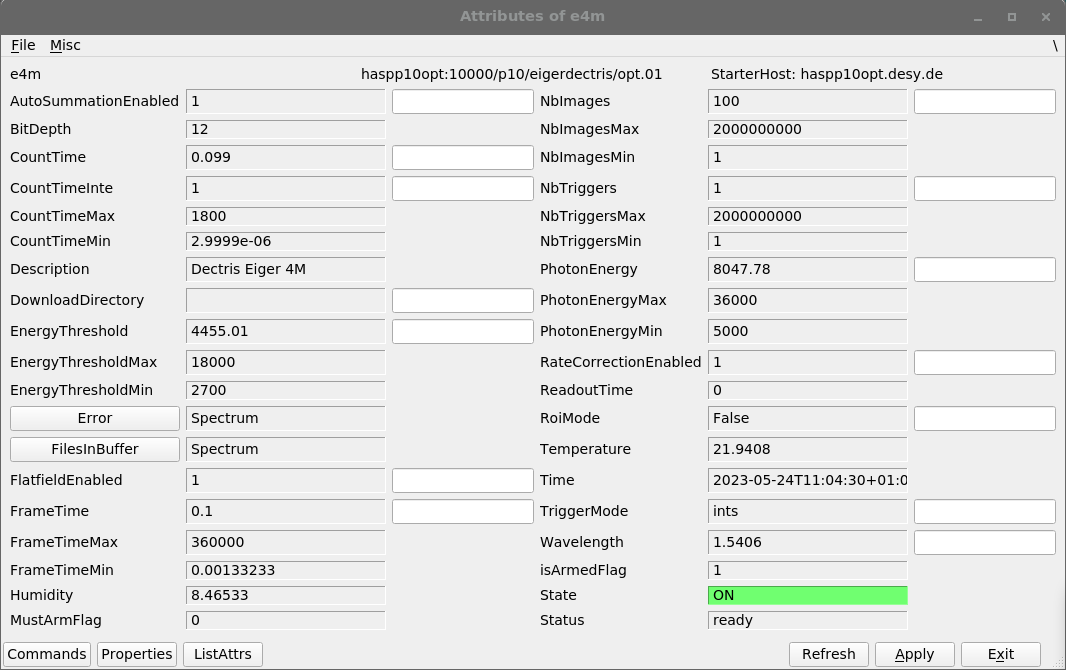

  Figure 28.1: EigerDectris Attributes

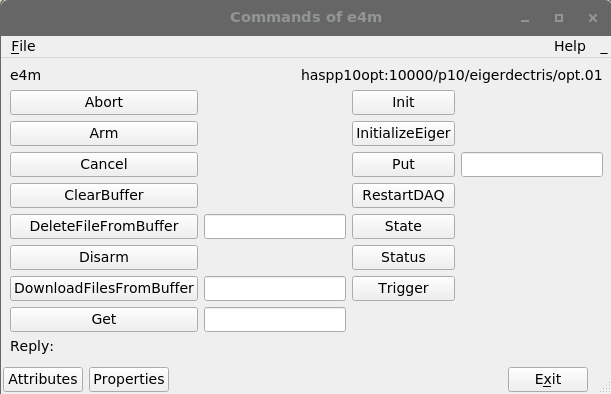

  Figure 28.2: EigerDectris Commands

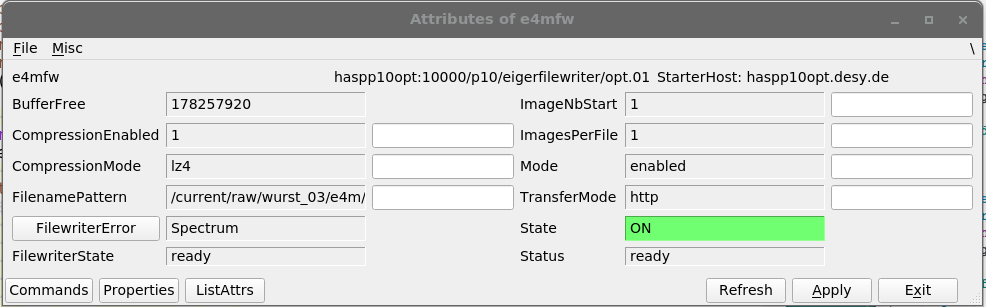

  Figure 28.3: EigerFW Attributes

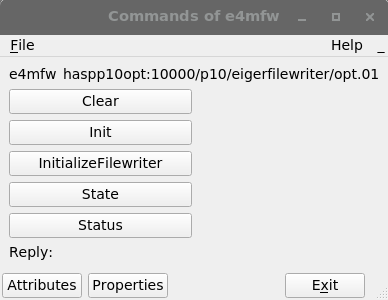

  Figure 28.4: EigerFW Commands
