taurus form

The taurus form application provides full access to a preselected group of devices. The widget 7.8.2 is started by, e.g.:

[p04user@haspp04exp2:~$ taurus form p04/hviseg/exp2.01 p04/hviseg/exp2.02 p04/hviseg/exp2.03 p04/hviseg/exp2.04

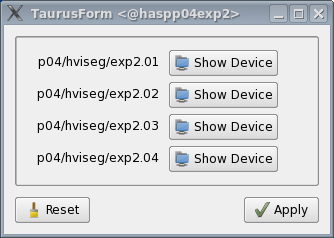

Figure 7.14: taurus form: device selector widget
Image taurusform2

After a device has been selected, its attributes and commands are accessible via 7.8.2.

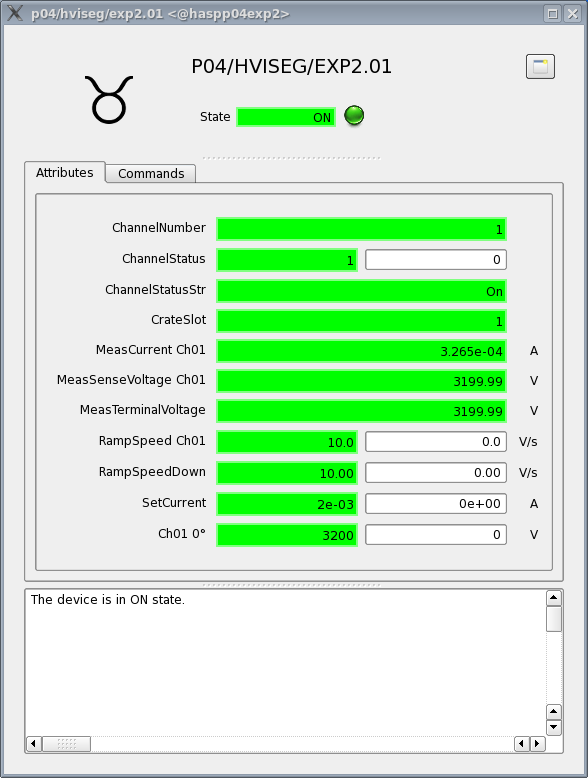

Figure 7.15: taurus form: device widget
Image taurusform1

If taurus form is invoked without parameters, the devices are selected using this 7.8.2 widget.

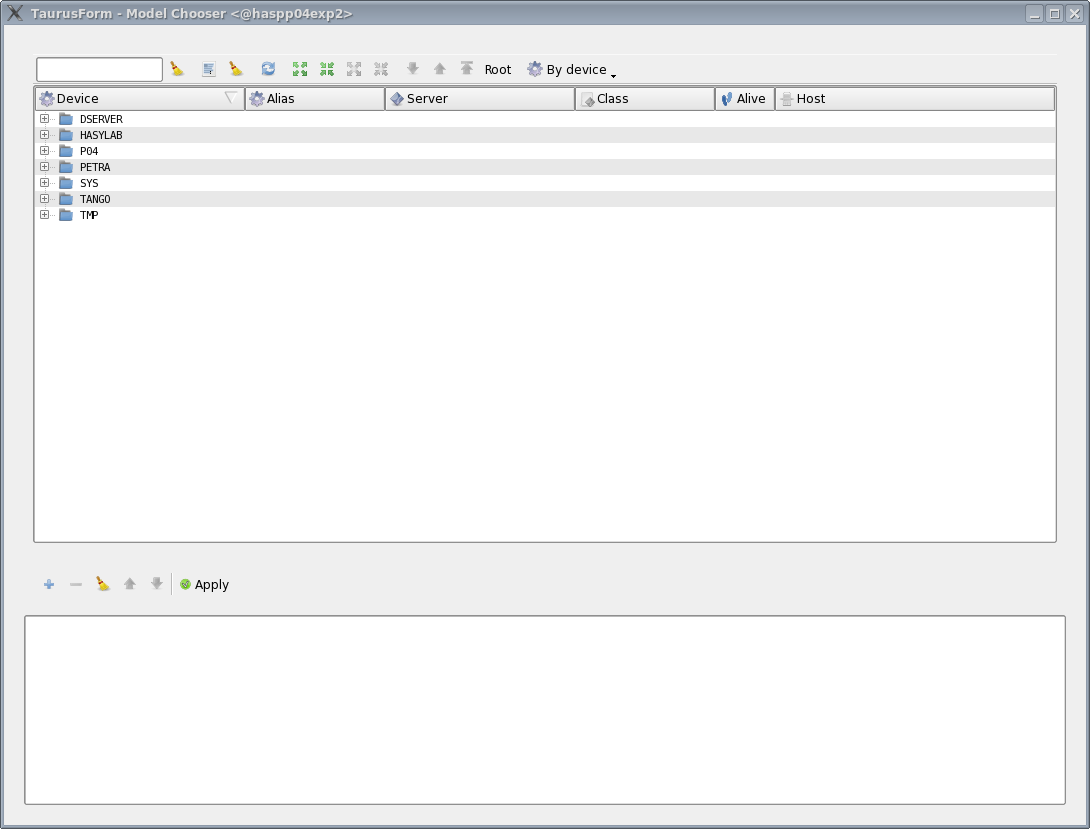

Figure 7.16: taurus form: the main widget
Image taurusform3
