taurus image is the standard viewer for images that are exported via a Tango server attribute.
[xxx@xxx:bin$ taurusimage "TANGO_HOST:DEVICE_NAME/ATTRIBUTE" e.g.[xxx@xxx:bin$ taurusimage "haso228y:1000/test/limaccds/01/video_last_image"Application help. Show other options on this application.

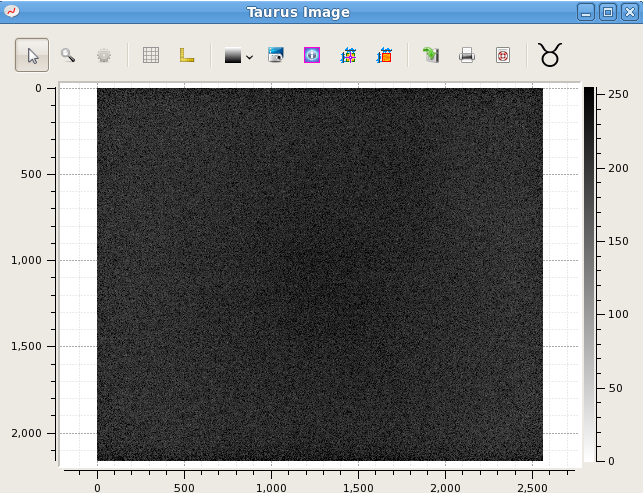

[xxx@xxx:bin$ taurusimage -hIf everything is right, the Figure 7.17 should be shown.
| Button | Description |
| 1 | selection tool |
| 2 | zoom tool. zoom in a selected rectangle region |
| 3 | configure the parameters of current selected item. e.g.colormap. Current items are shown in window 5 in Figure 7.19 |
| 4 | configure the paramaters of the grid. e.g. Background color |
| 5 | configure the axes style |
| 6 | change the colormap of the image. e.g. binary,gray |
| 7 | rectangle snapshot. Unkown functionalites, it looks it does not work |
| 8 | image statistics. shows data statistics (e.g. maximum and minimum value of z ) in the selected region |
| 9 | cross selection. shows the x and y direction pixel values respectively by selecting an point in the image |
| 10 | average cross selection. In a selected rectangle region,shows average x and y direction pixel values respectively |
| 11 | save the image in to local directory |
| 12 | print the image |
| 13 | help. show other operations. e.g. zoom: right-click+mouse move |
| 14 | change taurus model. change another model that you want to visualize |

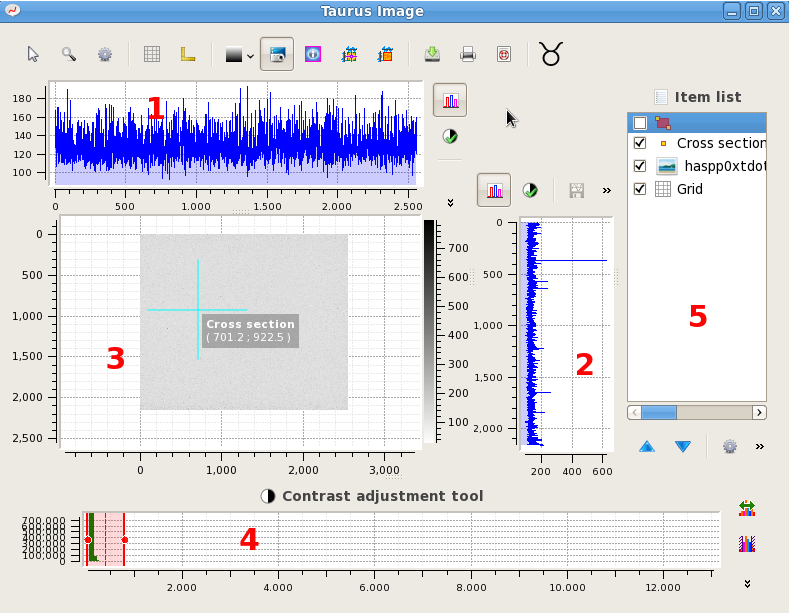

| Window | Description |
| 1 | shows the value of x direction when the cross or average cross selection is enabled |
| 2 | shows the value of y direction when the cross or average cross selection is enabled |
| 3 | shows the realtime image data from selected tango server |
| 4 | contrast adjustment tool. This functionality can be enabled by right click in window 3.Then select the 'contrast adjustment' option |
| 5 | shows the current item list in window 3.e.g. image, cross selection marker |
