MarCCD

This section displays the beamline specific code for the MarCCD.

$Spc::res_h{ blsc} = "marccd";
########################
### MarCCD widget
########################
$Spc::res_h{ marccd_title} = { text => "MarCCD"};

$Spc::res_h{ "marccd_io1"} = {
    label => { name => "SavingDirectory",
                get => sub { Spectra::tng_attrStringRd( "marccd", "SavingDirectory");},
                unit => ""},
     entry => { set => sub {
       Spectra::tng_attrStringWrt( "marccd", "SavingDirectory", $_[0]);}}};
$Spc::res_h{ "marccd_io2"} = {
    label => { name => "SavingPrefix",
                get => sub { Spectra::tng_attrStringRd( "marccd", "SavingPrefix");},
                unit => ""},
     entry => { set => sub {
       Spectra::tng_attrStringWrt( "marccd", "SavingPrefix", $_[0]);}}};
$Spc::res_h{ "marccd_io3"} = {
    label => { name => "SavingPostfix",
                get => sub { Spectra::tng_attrStringRd( "marccd", "SavingPostfix");},
                unit => ""},
     entry => { set => sub {
       Spectra::tng_attrStringWrt( "marccd", "SavingPostfix", $_[0]);}}};
$Spc::res_h{ "marccd_io4"} = {
    label => { name => "BinXandY",
	       get => sub { Spectra::tng_attrLongRd( "marccd", "BinXandY");},
                unit => ""},
     entry => { set => sub { Spectra::tng_attrLongWrt( "marccd", "BinXandY", $_[0]);}}};
$Spc::res_h{ "marccd_io5"} = {
    label => { name => "FrameShift",
                get => sub { Spectra::tng_attrLongRd( "marccd", "FrameShift");},
                unit => ""},
     entry => { set => sub { Spectra::tng_attrLongWrt( "marccd", "FrameShift", $_[0]);}}};
$Spc::res_h{ "marccd_io6"} = {
    label => { name => "SizeX",
                get => sub { Spectra::tng_attrLongRd( "marccd", "SizeX");},
                unit => ""},
     entry => { set => sub { Spectra::tng_attrLongWrt( "marccd", "SizeX", $_[0]);}}};
$Spc::res_h{ "marccd_io7"} = {
    label => { name => "SizeY",
                get => sub { Spectra::tng_attrLongRd( "marccd", "SizeY");},
                unit => ""},
     entry => { set => sub { Spectra::tng_attrLongWrt( "marccd", "SizeY", $_[0]);}}};
$Spc::res_h{ marccd_b1} = { name => "StartExposing",
                        command => sub { Spectra::tng_inout( "marccd", "StartExposing");}};
$Spc::res_h{ marccd_b2} = { name => "StopExposing",
                        command => sub { Spectra::tng_inout( "marccd", "StopExposing");}};

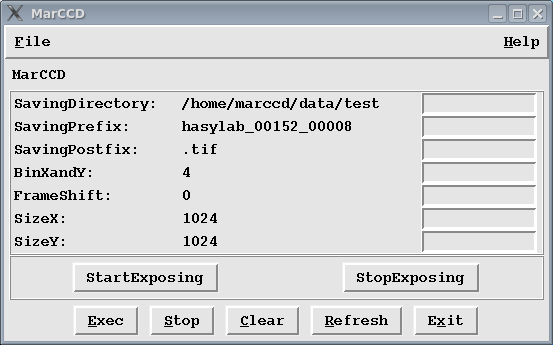

Figure 14.25: BLSC: MarCCD
