The Options Menu Button

The Options menu (6.12) contains the following items:

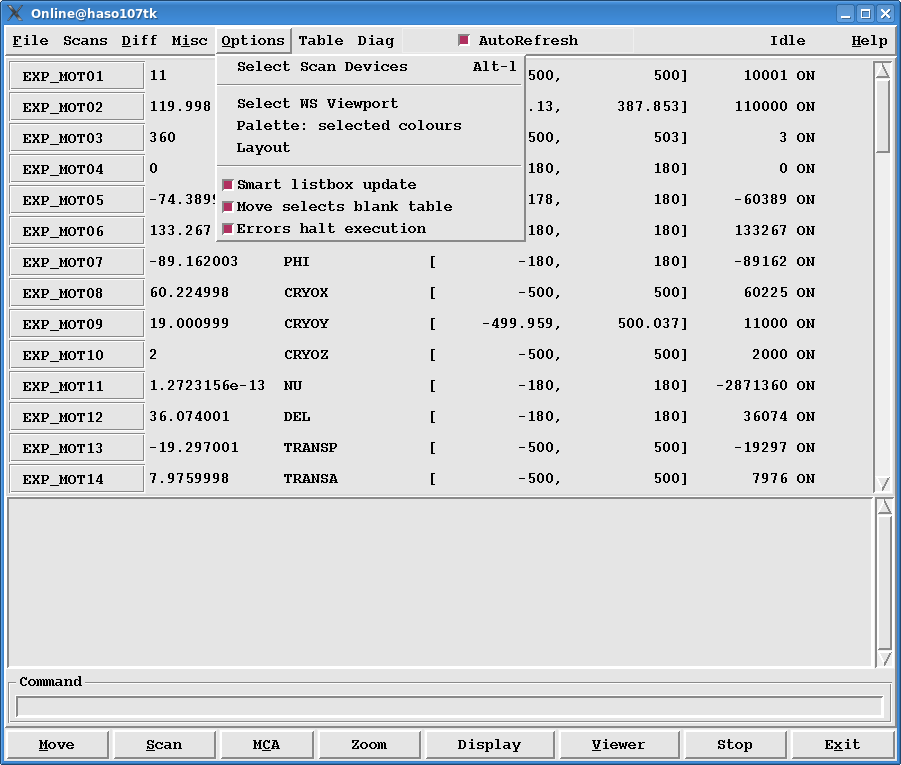

Figure 6.12: The TkI Options Menu
Image toplevel_options

 Select WS Viewport: Invokes a widget which changes the size of the graphical window (6.13). The button Pop restores the previous viewport size.

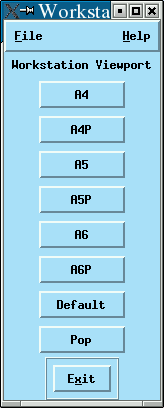

Figure 6.13: Select Workstation Viewport
Image select_workstation_viewport

 Palette: selected colours, many colours: Colour selectors.

 Smart listbox update: The listbox turns blank during scans.

 Move selects blank table: If move are started from TkI the blank table is selected.

 Errors halt execution: Can be disabled, if series of scans should not be interrupted due to some well-known but unimportant errors.
