Instant TINE Client access to the undulator

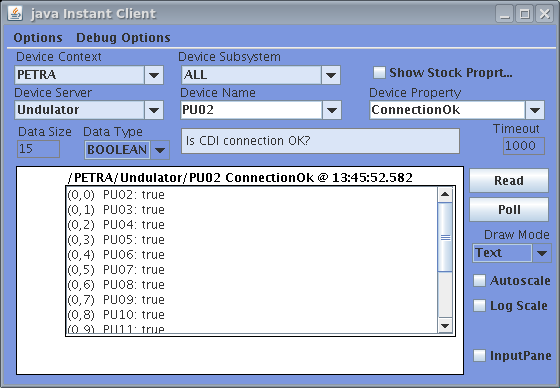

The following image displays the TINE Instant client display for the connection status.

Figure 68.8: Undulator, instant TINE Client displays the connection status
Image tine_undulatorConnectionsOk

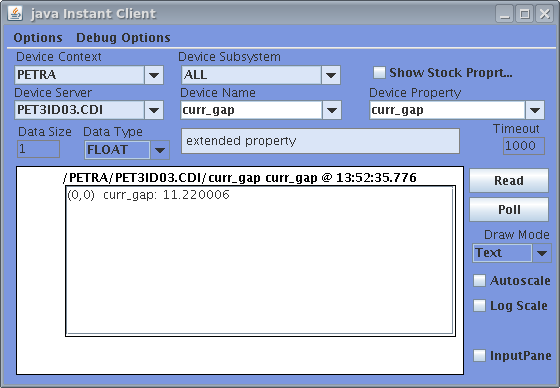

The following image displays the TINE Instant client display for the undulator CDI.

Figure 68.9: Undulator, instant TINE Client displays CDI gap reading
Image tine_undulatorCDI
