Slt, P07 (incl. screen shots)

This is the configuration at P07:

hasgksspp07eh3:
  p07/ads/sps1  192.168.34.161 haspp07sltv.desy.de
  p07/ads/sps2  192.168.34.162 haspp07sltvh.desy.de

  p07/slt/exp.01 p07/ads/sps1 chan 0 slt1vgap
  p07/slt/exp.02 p07/ads/sps1 chan 1 slt1voffs
  p07/slt/exp.03 p07/ads/sps2 chan 0 slt2hleft
  p07/slt/exp.04 p07/ads/sps2 chan 1 slt2right
  p07/slt/exp.05 p07/ads/sps2 chan 2 slt2vgap
  p07/slt/exp.06 p07/ads/sps2 chan 3 slt2voffs

Figure 56.13: Properties of the PLC Server for the Slt, P07

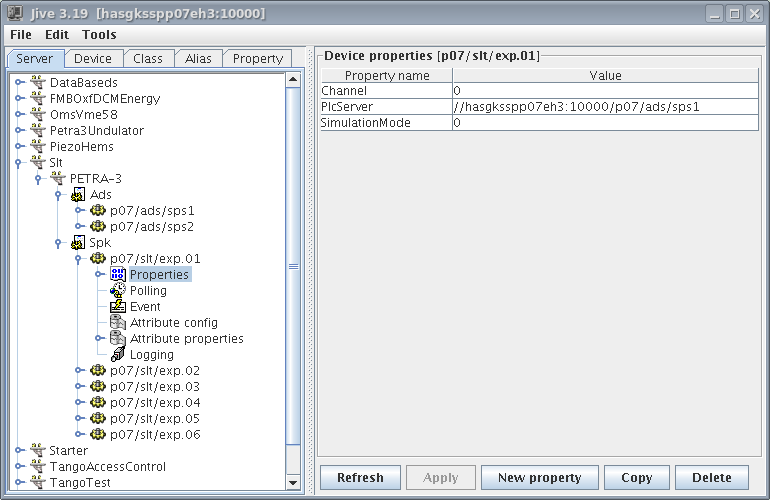

Figure 56.14: Properties of the Slt Server, P07

slt1vgap, etc. are logical names which are used in Spectra, see below.

After the server has been configured properly, the devices are introduced to Online (/online_dir/online.xml):

<device>
 <name>slt1vgap</name>
 <type>stepping_motor</type>
 <module>spk</module>
 <device>p07/slt/exp.01</device>
 <control>tango</control>
 <hostname>hasgksspp07eh3:10000</hostname>
</device>
<device>
 <name>slt1voffs</name>
 <type>stepping_motor</type>
 <module>spk</module>
 <device>p07/slt/exp.02</device>
 <control>tango</control>
 <hostname>hasgksspp07eh3:10000</hostname>
</device>
<device>
 <name>slt2hleft</name>
 <type>stepping_motor</type>
 <module>spk</module>
 <device>p07/slt/exp.03</device>
 <control>tango</control>
 <hostname>hasgksspp07eh3:10000</hostname>
</device>
<device>
 <name>slt2hright</name>
 <type>stepping_motor</type>
 <module>spk</module>
 <device>p07/slt/exp.04</device>
 <control>tango</control>
 <hostname>hasgksspp07eh3:10000</hostname>
</device>
<device>
 <name>slt2vgap</name>
 <type>stepping_motor</type>
 <module>spk</module>
 <device>p07/slt/exp.05</device>
 <control>tango</control>
 <hostname>hasgksspp07eh3:10000</hostname>
</device>
<device>
 <name>slt2voffs</name>
 <type>stepping_motor</type>
 <module>spk</module>
 <device>p07/slt/exp.06</device>
 <control>tango</control>
 <hostname>hasgksspp07eh3:10000</hostname>
</device>
