Set the Attributes of TEXTs

/bg_color=int_expr: The text background colour. See table in section 15.3.69.
/color=int_expr: The text colour. See table in section 15.3.69.
/exfactor=float_expr: The expansion factor.
/font=int_expr: Character set number, see the table in section 15.3.69 for the fonts and the table in section 15.3.69 for the available symbols. A symbol can be selected by:
SPECTRA> set 1.4/string="Wavelength[\angstroem{}]"

The loaded fonts can be inspected by:
SPECTRA> show x11/font
/frame=int_expr: 0 - normalized device coordinates, from 0 to 1. 1 - world coordinates
/h_align=int_expr: Horizontal alignment
0 - Normal 1 - Left 2 - Center 3 - Right
/height=int_expr: The text height [pixel], default 17.
The appearance of the TEXTs depends also on the /map_mode attribute of the LAYOUT.
/prec=int_expr: The character size [points] for which the font was calculated. It is recommended to set it to 0.
/string=text_expr: The text string.
/ux=float_expr
/uy=float_expr: The up-vector. Used to rotate the text.
/v_align=int_expr: Vertical alignment
0 - Normal 1 - Top 2 - Cap 3 - Half 4 - Base 5 - Bottom
/x=float_expr
/y=float_expr: The position of the text string. Depending on the value of the /frame flag is it measured in normalized device coordinates or world coordinates.
e.g.:
: SPECTRA> set bpu1.4/y=1.1
Sets the y-position of a TEXT.

Table 15.3: The default colour code

Code	Colour
0	White
1	Black
2	Red
3	Green
4	Blue
5	Cyan
6	Yellow
7	Magenta
8	Grey85
9	Grey50

**Table 15.4:** Example: Using the colour opaque
! ! Example for using the colour opaque (255): ! delete . ! ! create the template, a gauss curve ! create g1 -5 5 200 calc g1 = exp(-g1g1) for (i=2; i < 20; i = i + 1) sname = g""i ! ! duplicate the template ! copy g1 sname ! ! shift the new curve ! calc x(sname) = x(sname) - 0.1i calc sname = sname - abs(0.1(i-10)) ! ! set the colour to opaque, select 'line-area' ! set sname/colour=255/primitive=4/type=1/y_shift=1-0.05i endfor ! ! all curves are diplayed in the same window ! set /x_min=-8/x_max=5/y_max=2 ! ! no axes are displayed ! overlay delete g1. display postscript/nocon/eps opaque.ps

Table 15.4: Example: Using the colour opaque

!
! Example for using the colour opaque (255):
!
  delete *.*
!
! create the template, a gauss curve
!
  create g1 -5 5 200
  calc g1 = exp(-g1*g1)

  for (i=2; i < 20; i = i + 1)
      sname = g""i
!
! duplicate the template
!
      copy g1 sname
!
! shift the new curve
!
      calc x(sname) = x(sname) - 0.1*i
      calc sname = sname - abs(0.1*(i-10))
!
! set the colour to opaque, select 'line-area'
!
      set sname/colour=255/primitive=4/type=1/y_shift=1-0.05*i
  endfor
!
! all curves are diplayed in the same window
!
  set */x_min=-8/x_max=5/y_max=2
!
! no axes are displayed
!
  overlay

  delete g1.*
  display
  postscript/nocon/eps opaque.ps

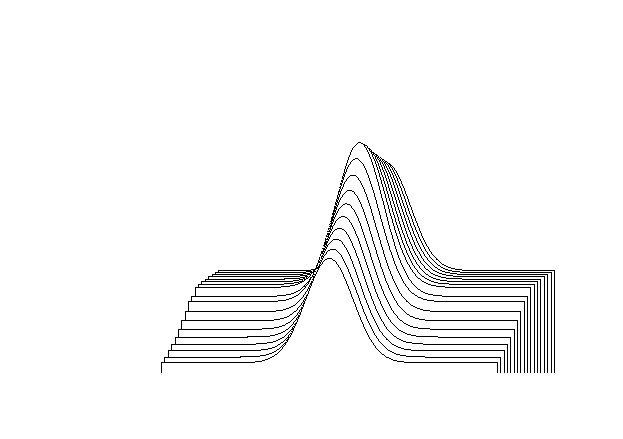

**Figure 15.8:** Output of the opaque example code, sec. 15.3.69

Table 15.5: The Fonts

Code	Font
0	Times-Roman
1	Times Roman
2	Times Italic
3	Times Bold
4	Times Bold Italic
5	Helvetica
6	Helvetica Oblique
7	Helvetica Bold
8	Helvetica Bold Oblique
9	Courier
10	Courier Oblique
11	Courier Bold
12	Courier Bold Oblique
13	New Century Schoolbook
14	New Century Schoolbook Italic
15	New Century Schoolbook Bold
16	New Century Schoolbook Bold Italic
17	Symbol

$\int$	`\int`	$\forall$	`\forall`
$\exists$	`\exists`	$\ni$	`\ni`
`<`	`\less`	`>`	`\greater`
$\cong$	`\congruent`		`\therefor`
$\perp$	`\perp`	$\emptyset$	`\emptyset`
{	`\{`	}	`\}`
$\sim$	`\sim`	$\leq$	`\leq`
$\infty$	`\infty`	$\pm$	`\pm`
$\geq$	`\geq`	$\times$	`\times`
$\propto$	`\propto`	$\partial$	`\partial`
$\div$	`\div`	$\neq$	`\neq`
$\equiv$	`\equiv`	$\approx$	`\approx`
$\otimes$	`\otimes`	$\oplus$	`\oplus`
	`\angleleft`		`\angleright`
$\cap$	`\cap`	$\cup$	`\cup`
$\supset$	`\supset`	$\supseteq$	`\supseteq`
$\subset$	`\notsubset`	$\subset$	`\subset`
$\subseteq$	`\subseteq`	$\in$	`\in`
$\in$	`\notelement`	$\angle$	`\angle`
$\nabla$	`\nabla`	$\prod$	`\prod`
$\sum$	`\sum`	$\surd$	`\surd`
$\cdot$	`\cdot`	$\neg$	`\neg`
$\wedge$	`\wedge`	$\vee$	`\vee`

$\leftrightarrow$	`\leftrightarrow`	$\leftarrow$	`\leftarrow`
$\uparrow$	`\uparrow`	$\rightarrow$	`\rightarrow`
$\downarrow$	`\downarrow`	$\Leftrightarrow$	`\Leftrightarrow`
$\Leftarrow$	`\Leftarrow`	$\Uparrow$	`\Uparrow`
$\Rightarrow$	`\Rightarrow`	$\Downarrow$	`\Downarrow`

$\alpha$	`\alpha`	$\beta$	`\beta`
$\gamma$	`\gamma`	$\Gamma$	`\Gamma`
$\delta$	`\delta`	$\Delta$	`\Delta`
$\epsilon$	`\epsilon`	$\zeta$	`\zeta`
$\eta$	`\eta`	$\theta$	`\theta`
$\Theta$	`\Theta`	$\vartheta$	`\vartheta`
$\iota$	`\iota`	$\kappa$	`\kappa`
$\lambda$	`\lambda`	$\Lambda$	`\Lambda`
$\mu$	`\mu`	$\nu$	`\nu`
$\xi$	`\xi`	$\Xi$	`\Xi`
$\pi$	`\pi`	$\Pi$	`\Pi`
$\rho$	`\rho`	$\sigma$	`\sigma`
$\Sigma$	`\Sigma`	$\tau$	`\tau`
$\phi$	`\phi`	$\Phi$	`\Phi`
$\varphi$	`\varphi`	$\chi$	`\chi`
$\upsilon$	`\upsilon`	$\Upsilon$	`\Upsilon`
$\psi$	`\psi`	$\Psi$	`\Psi`
$\omega$	`\omega`	$\Omega$	`\Omega`

Å	`\angstroem`	$\hbar$	`\hbar`
$\sharp$	`\sharp`	$\cdot$	`\cdot`
©	`\copyright`	$\clubsuit$	`\clubsuit`
$\diamondsuit$	`\diamondsuit`	$\heartsuit$	`\heartsuit`
$\spadesuit$	`\spadesuit`	$\bullet$	`\bullet`
$\ldots$	`\ldots`		`\carriagereturn`
$\aleph$	`\aleph`	$\Im$	`\Im`
$\Re$	`\Re`

Table 15.10: The Line Types

Code	Line Type
1	Solid
2	Dotted .......
3	Dotted . . . .
4	Dashed - - - -
5	Dashed - - -
6	Dashed dotted - . - .
7	Dashed dotted - ... - ...
8	Dashed dotted - ..... - .....
8	Dashed dotted - - . - - .

Table 15.11: The Marker Type

Code	Marker Type
1	Dot
2	Plus
3	Star
4	Circle
5	Diagonal cross
-1	Solid circle
-2	Triangle up
-3	Solid triangle up
-4	Triangle down
-5	Solid triangle down
-6	Square
-7	Solid square
-8	Bow-tie
-9	Solid bow-tie
-10	Hourglass
-11	Solid hourglass
-12	Diamond
-13	Solid diamond

Table 15.12: The Tag Types

Code	Tag Type
1	Line
2	Marker
3	Left arrow
4	Right arrow
5	Left-right arrow
6	Square
7	Solid square
8	Rectangle (PAR1 stretches it)
9	Solid rectangle
10	Ellipse (PAR1 stretches it)
11	Solid circle (PAR1 stretches it)
12	Triangle
13	Solid triangle
