Smooth

Smoothes a SCAN.

Format:

SPECTRA> sm$*$ooth [/s=val1] id1 [id2]

Description:

Smooth originates from GLATT (by P. Gürtler). Id1 selects the SCAN which is smoothed. If id2 is omitted, the name of the new SCAN will be the name of id1 concatenated with "_S".

/nocon$*$firm

If SMOOTH works 'in place' (id1 = id2), it asks for confirmation before is overrides the original data, unless /nocon is supplied.

/S=val1

The smoothing factor. Its default value is 1.

/NP=n_points

The number of points of id2 (3 - 8192, default: number of points of id1).

e.g.:

read/notext bpu1
create/tag/x=0.8 bpu1
smooth/s=3 bpu1 temp
set temp/col=2
create/tag/x=0.8/y=0.82/string=smoothed temp
display

Bpu1 is smoothed. The result is named temp. See the figure in section 15.3.73.

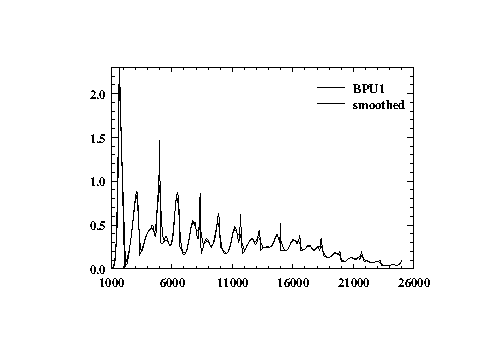

Figure 15.10: Example for SMOOTH
