scan, best effort callback, DB access, Metadata, pyspMonitor

#!/usr/bin/env python3
"""
 to be launched like this: ipython3 --matplotlib=qt5 scanBecDbMD.py
"""
#import matplotlib
#matplotlib.use('qt5agg')
from bluesky import Msg
from bluesky.plans import scan
import blueskyDESY
from bluesky import RunEngine
from bluesky.callbacks.best_effort import BestEffortCallback
from bluesky.preprocessors import SupplementalData
from databroker import Broker

def main():

    db = Broker.named('temp')

    bec = BestEffortCallback()
    AMG = blueskyDESY.getActiveMntGrp()
    print( "testMG.main: AMG %s " % repr( AMG))
    mg = blueskyDESY.Experiment( read_attrs = AMG[ 'counters'])
    eh_mot65 = blueskyDESY.motorTango( name = 'eh_mot65')

    RE = RunEngine()

    sd = SupplementalData()
    RE.preprocessors.append(sd)
    sd.baseline = [mg, eh_mot65]
    RE.subscribe( db.insert)
    #
    # matplotlib and printout
    #
    RE.subscribe( bec)
    #
    # data to pyspMonitor3.py
    #
    RE.subscribe(blueskyDESY.docCallback())
    RE.md[ 'user'] = 'p09user' # permanent metadata, lifetime of RE
    uid, = RE(scan([mg], eh_mot65, 0, 0.1, 3), sample='Gold') # metadata for this run

    #header = db[uid]
    header = db[-1]
    # or header = db[-1]

    print( "header.start %s "  % repr( header.start))
    print( "header.table %s "  % repr( header.table()))
    print( "header.table, primary %s "  % repr( header.table( 'primary')))
    print( "header.table, baseline %s "  % repr( header.table( 'baseline')))

    res = db( user='p09user')
    print( "results %s" % type( res))
    return

if __name__ == "__main__":
    main()

Figure 11.1: scan, 4 counters, graphics

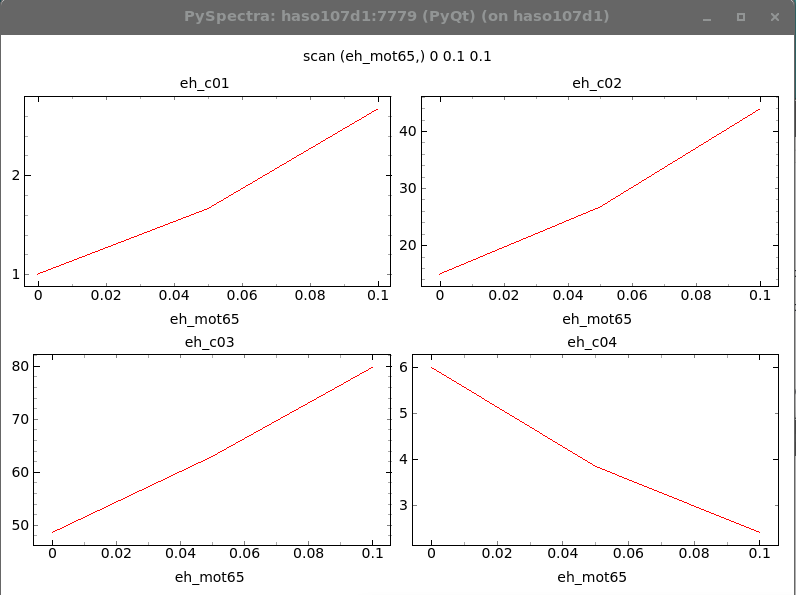

Figure 11.2: scan, 4 counters, pyspMonitor
