toPyspMonitor(), simulate a scan, send pairs of x- and y-values to pyspMonitor

The following piece of code simulates a scan using toPyspMonitor(). 7.2.2 shows the final plot, 7.2.2 the main widget.

#!/usr/bin/env python3
#
# this script simulates a scan. Pairs of x- and y-values are sent
# to the pyspMonitor.
#
import random, time
import PySpectra, HasyUtils

def main():

    (status, wasLaunched) = PySpectra.assertPyspMonitorRunning()

    ret = PySpectra.toPyspMonitor( { 'command': ["cls", "delete"]})
    if ret[ 'result'].upper() != 'DONE':
        print( "error from pyspMonitor %s" % ret[ 'result'])
        return

    ret = PySpectra.toPyspMonitor( { 'command': ["setTitle \"An important title\"",
                                        "setComment \"An interesting comment\""]})

    max = 101
    name = "TestScan"
    ret = PySpectra.toPyspMonitor( {'Scan': { 'name': name,
                                     'xMin': 0., 'xMax': 100.,
                                     'yMin': 0., 'yMax': 1.,
                                     'symbol': '+','symbolColor': 'red',
                                     'symbolSize': 7, 'lineColor': 'blue',
                                     'nPts': max,
                                     'autoscaleX': False, 'autoscaleY': True}})

    for i in range( max):
        pos = float(i)
        posY = random.random()*10
        PySpectra.toPyspMonitor( { 'command': ['setXY %s %d %s %s' % (name, i, repr(pos), repr(posY))]})
        PySpectra.toPyspMonitor( { 'command': ["display"]})
        time.sleep( 0.1)

    print( "Press <space> to continue")
    while 1:
        key = HasyUtils.inkey()
        if key == 32:
            break
        time.sleep( 0.1)
    #
    # if the pyspMonitor was launched by this script, kill it.
    #
    if wasLaunched:
        hshRet = PySpectra.toPyspMonitor( { 'command': [ 'exit']})

    return

if __name__ == "__main__":
    main()

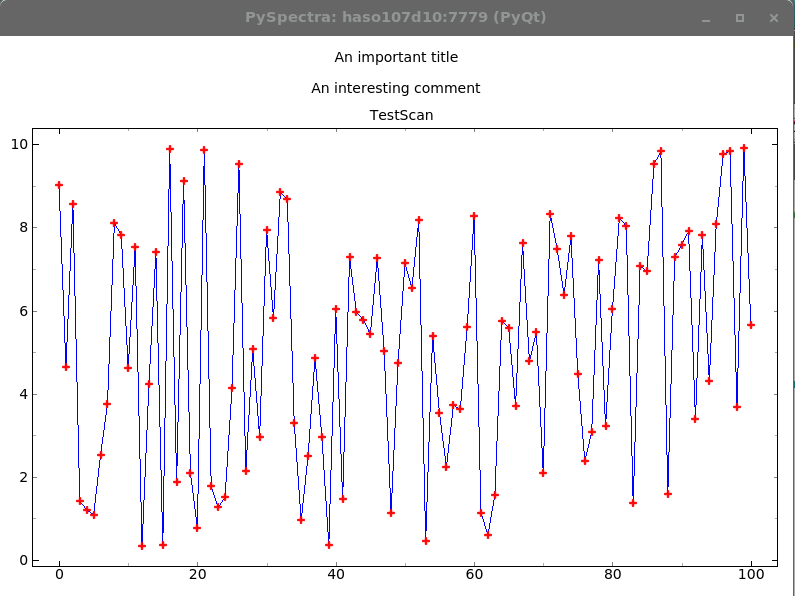

Figure 7.6: toPyspMonitor(), simulate a scan, send pairs of x- and y-values to pyspMonitor

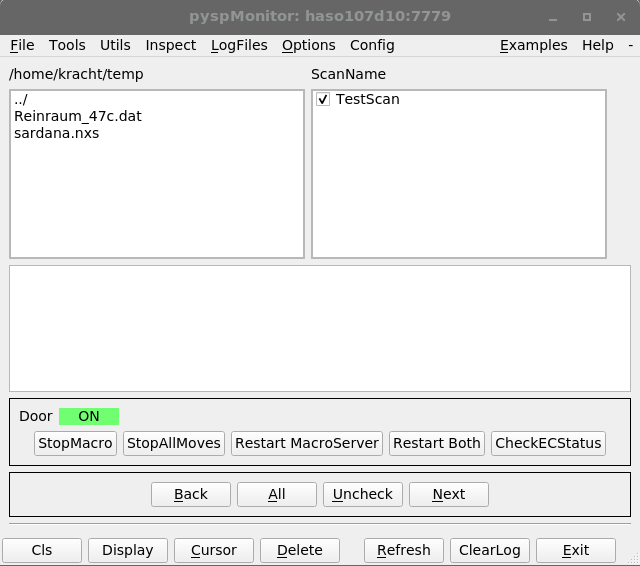

Figure 7.7: toPyspMonitor(), simulate a scan, send pairs of x- and y-values, main pysp widget
