Transferring single files from Windows

  1. Download and install WinSCP from http://winscp.net or download the portable version

  2. Start WinSCP

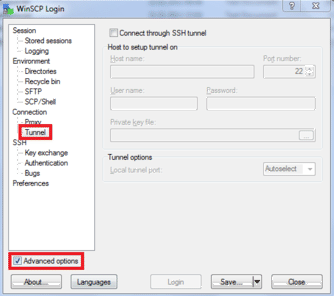

  3. Click the "Advanced options" box, in the Advanced settings select ''Tunnel''
    \includegraphics[width=.60\textwidth]{sec_winscp/images/winscp1.eps}

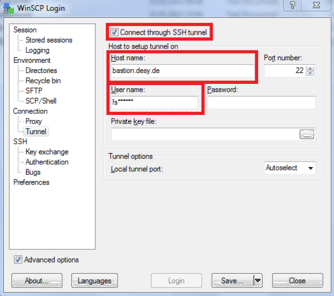

  4. Check the box ''Connect through SSH tunnel'' and make the following entries, as username select the appropriate beamtime account
    \includegraphics[width=.60\textwidth]{sec_winscp/images/winscp2.eps}

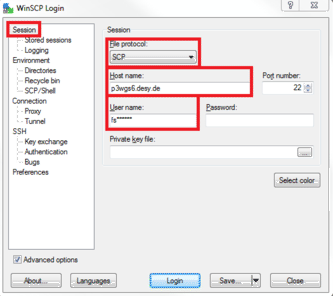

  5. Select ''Sessions'' and enter the following
    \includegraphics[width=.60\textwidth]{sec_winscp/images/winscp3.eps}

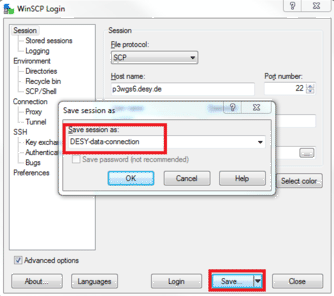

  6. It is recommended to save the settings, for easier use next time
    \includegraphics[width=.60\textwidth]{sec_winscp/images/winscp4.eps}

  7. Once the session settings have been saved, click ''Login''

  8. You have to accept the two ssh-keys and provide the password twice, one for the tunnel the other one for the data server itself.
    \includegraphics[width=.60\textwidth]{sec_winscp/images/sshkey.eps}

    \includegraphics[width=.50\textwidth]{sec_winscp/images/winscp5.eps}

  9. After you have successfully been connected, you have to navigate to the appropriate directory. First you have to go to the root directory and then navigate to /pnfs/desy.de/petra3/disk/users/$<$BeamtimeID$>$
    \includegraphics[width=.60\textwidth]{sec_winscp/images/winscp7.eps}

    \includegraphics[width=.60\textwidth]{sec_winscp/images/winscp8.eps}

  10. Copy your data.
