TIP850-10 (ADC/DAC, 12 Bit, TEWS)

Analog-digital digital-analog converter: 8 differential AD channel, 4 DA channel, 12b.

TVME200-10, see figures 66.1 and 66.2: S1 = 0, S2 = 8 (0x0800), S2 can be 0, 4, 8, C only, S4: A24/A32 memory enable and size, S4 = 0 - A24/A32 memory disabled, S4 = 1 - A24, 128 kB, 32 bK/IP, S4 = 2 - A24, 256 kB, 64 kB/IP, S5, S6: A24/A32 base address, def: 0xd00000 (A24), 0x00000000 (A32), S5: A[23:20], S6: A[19:16] for A24, S5: A[31:28], S6: A[27:24] for A32, memory must be boundary aligned with S4,

The TIP850/TVME200 power requirements: 300mA at 5V, 1 mA at +12V, 1mA at -12V.

VIPC616, A16D16 1k at 0x800 base (every piggy back uses 256B), base2 0x0. Jumpers: E3.7-E7.7 1111011 (from left to right, VME connectors point downwards), A24, E20.8-E21.8 11101111 (A23-A17, 0x10 00 00, parking position, avoids collisions with V260 I/Os), the other jumpers remain in the default position. VIPC616 power requirements: 0 mA at 12V, 0 mA at -12V, 610 mA at 5V.

The TIP850/VIPC616 power requirements: 250 mA at 5V, 70 mA at 12V, 35 mA at -12V

A TIP850-10 with differential inputs is introduced to Online by:

define/dev=adc/mod=tip850/base=0x800/vector=0/chan=0 adc1
define/dev=adc/mod=tip850/base=0x800/vector=0/chan=1 adc2
define/dev=adc/mod=tip850/base=0x800/vector=0/chan=2 adc3
define/dev=adc/mod=tip850/base=0x800/vector=0/chan=3 adc4
define/dev=adc/mod=tip850/base=0x800/vector=0/chan=4 adc5
define/dev=adc/mod=tip850/base=0x800/vector=0/chan=5 adc6
define/dev=adc/mod=tip850/base=0x800/vector=0/chan=6 adc7
define/dev=adc/mod=tip850/base=0x800/vector=0/chan=7 adc8
define/dev=dac/mod=tip850/base=0x800/vector=0/chan=0 dac1
define/dev=dac/mod=tip850/base=0x800/vector=0/chan=1 dac2
define/dev=dac/mod=tip850/base=0x800/vector=0/chan=2 dac3
define/dev=dac/mod=tip850/base=0x800/vector=0/chan=3 dac4

For the single-ended operation the following definitions are used:

define/dev=adc/mod=tip850/base=0x800/vector=0/chan=0 adcs1
define/dev=adc/mod=tip850/base=0x800/vector=0/chan=1 adcs2
define/dev=adc/mod=tip850/base=0x800/vector=0/chan=2 adcs3
define/dev=adc/mod=tip850/base=0x800/vector=0/chan=3 adcs4
define/dev=adc/mod=tip850/base=0x800/vector=0/chan=4 adcs5
define/dev=adc/mod=tip850/base=0x800/vector=0/chan=5 adcs6
define/dev=adc/mod=tip850/base=0x800/vector=0/chan=6 adcs7
define/dev=adc/mod=tip850/base=0x800/vector=0/chan=7 adcs8
define/dev=adc/mod=tip850/base=0x800/vector=0/chan=8 adcs9
define/dev=adc/mod=tip850/base=0x800/vector=0/chan=9 adcs10
define/dev=adc/mod=tip850/base=0x800/vector=0/chan=10 adcs11
define/dev=adc/mod=tip850/base=0x800/vector=0/chan=11 adcs12
define/dev=adc/mod=tip850/base=0x800/vector=0/chan=12 adcs13
define/dev=adc/mod=tip850/base=0x800/vector=0/chan=13 adcs14
define/dev=adc/mod=tip850/base=0x800/vector=0/chan=14 adcs15
define/dev=adc/mod=tip850/base=0x800/vector=0/chan=15 adcs16
define/dev=dac/mod=tip850/base=0x800/vector=0/chan=0 dac1
define/dev=dac/mod=tip850/base=0x800/vector=0/chan=1 dac2
define/dev=dac/mod=tip850/base=0x800/vector=0/chan=2 dac3
define/dev=dac/mod=tip850/base=0x800/vector=0/chan=3 dac4

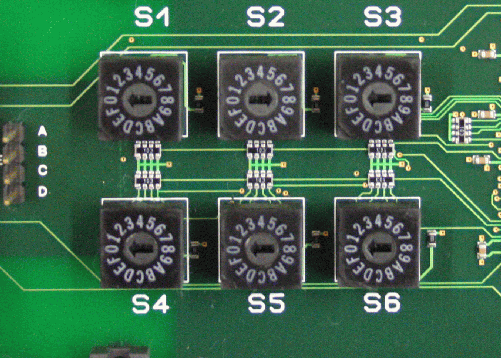

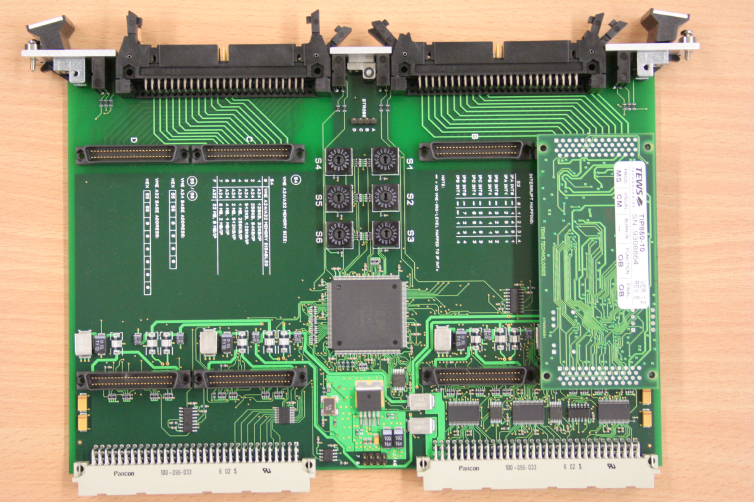

**Figure 66.1:** TVME200 - TIP850, Total, Base: 0x800

**Figure 66.2:** TVME200 - TIP850, Detail
