FMB-Oxford DCM, PMAC, Tango

The FMB-Oxford monochromator is controlled by the FMBOxfDCMEnergy server.

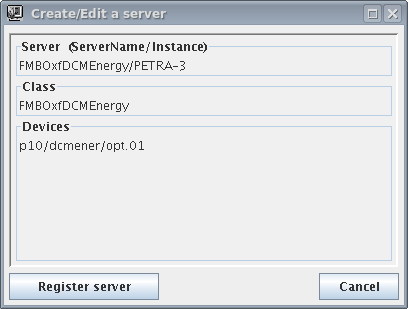

Figure 10.1: FMB, create the Energy server

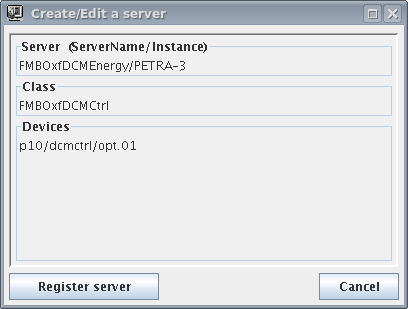

Figure 10.2: FMB, create Ctrl server

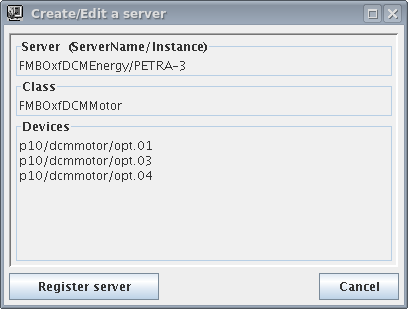

Figure 10.3: FMB, create ther Motor server

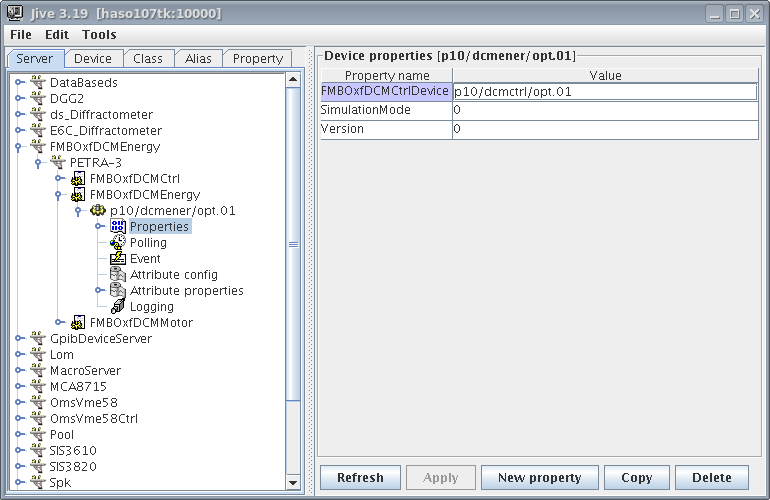

Figure 10.4: Properties of the FMB Energy Server

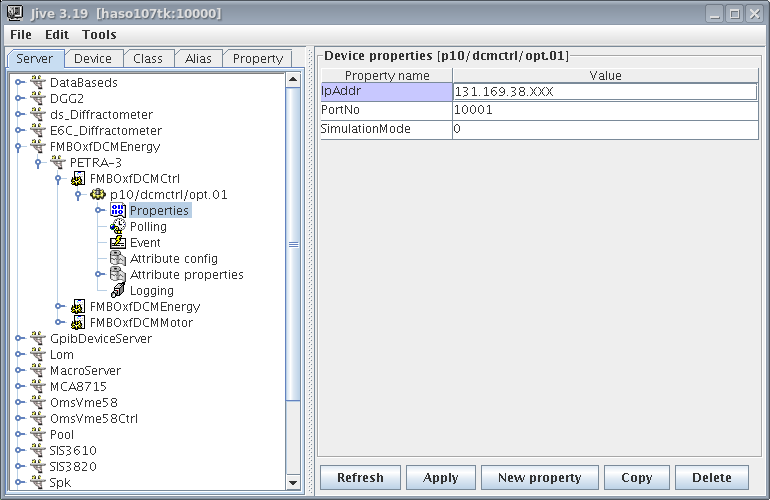

Figure 10.5: Properties of the FMB Ctrl Server

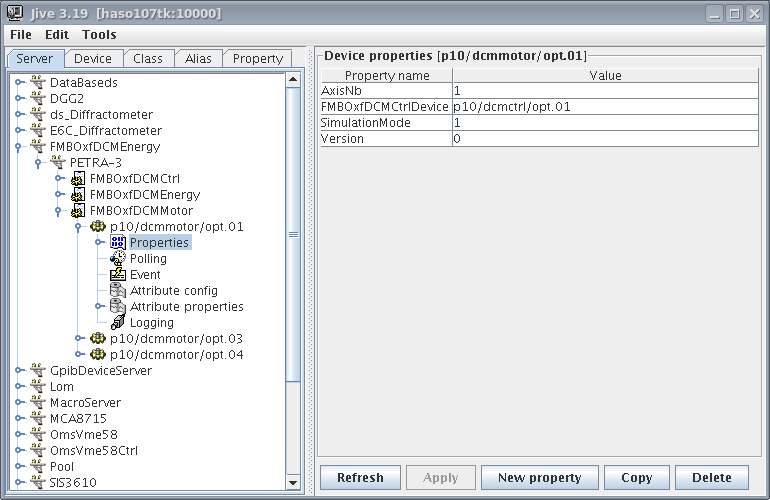

Figure 10.6: Properties of the FMB Motor server

<device>
 <name>mnchrmtr</name>
 <type>type_ango</type>
 <module>motor_tango</module>
 <device>p10/dcmener/opt.01</device>
 <control>tango</control>
 <hostname>haso107tk:10000</hostname>
</device>
<device>
 <name>dcm_bragg</name>
 <type>type_tango</type>
 <module>motor_tango</module>
 <device>p10/dcmmotor/opt.01</device>
 <control>tango</control>
 <hostname>haso107tk:10000</hostname>
</device>
<device>
 <name>dcm_perp</name>
 <type>type_tango</type>
 <module>motor_tango</module>
 <device>p10/dcmmotor/opt.03</device>
 <control>tango</control>
 <hostname>haso107tk:10000</hostname>
</device>
<device>
 <name>dcm_parallel</name>
 <type>type_tango</type>
 <module>motor_tango</module>
 <device>p10/dcmmotor/opt.04</device>
 <control>tango</control>
 <hostname>haso107tk:10000</hostname>
</device>

The version property as to be choosen according the the following table:

 0  -> old pmac software with old conversion factors
 1  -> new pmac software with new conversion factors (haspp08, haspp01oh1, hasgksspp05s01)
 2  -> new pmac software with old conversion factors (haspp10opt, haspp09)
10  -> DCM: not use pmac energy moves, conversion factors have to be written in attribute (hasgksspp07eh3)
11  -> SMB: not use pmac energy moves, conversion factors have to be written in attribute  (hasgksspp07eh3)
