FIO data reader. More...

#include <fio_reader.hpp>

Inheritance diagram for pni::io::fio_reader:

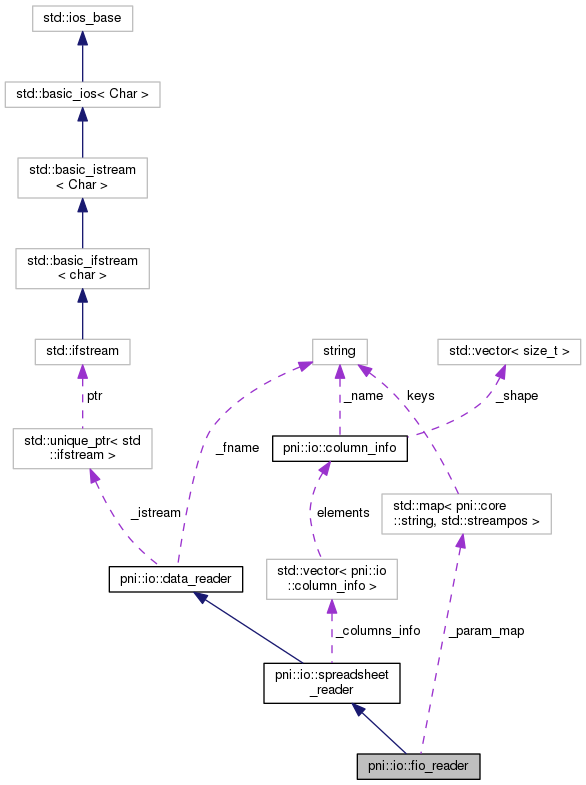

Collaboration diagram for pni::io::fio_reader:

Public Member Functions
	fio_reader ()
	default constructor More...

	fio_reader (const fio_reader &r)=delete
	copy construction is deleted More...

	fio_reader (fio_reader &&r)
	move constructor More...

	fio_reader (const pni::core::string &n)
	standard constructor More...

	~fio_reader ()
	destructor More...

fio_reader &	operator= (const fio_reader &r)=delete
	copy assignment is deleted More...

fio_reader &	operator= (fio_reader &&r)
	move assignemnt operator More...

size_t	nparameters () const
	get number of parameters More...

std::vector< pni::core::string >	parameter_names () const
	get parameter names More...

template<typename T >
T	parameter (const pni::core::string &name) const
	get parameter by name More...

template<typename CTYPE >
CTYPE	column (const pni::core::string &n) const
	get single column More...

template<typename CTYPE >
void	column (const pni::core::string &n, CTYPE &c) const
	read single column More...

Public Member Functions inherited from pni::io::spreadsheet_reader
virtual	~spreadsheet_reader ()
	destructor More...

spreadsheet_reader &	operator= (const spreadsheet_reader &)=delete
	copy assignment operator is deleted More...

spreadsheet_reader &	operator= (spreadsheet_reader &&r)
	move assignment operator More...

size_t	ncolumns () const
	get column number More...

size_t	nrecords () const
	get record number More...

iterator	begin ()
	get iterator to first column More...

const_iterator	begin () const
	get const first iterator More...

iterator	end ()
	get last iterator More...

const_iterator	end () const
	get const last iterator More...

bool	has_column (const pni::core::string &name) const
	checks if a particular column exists More...

size_t	column_index (const pni::core::string &name) const
	get column index More...

Public Member Functions inherited from pni::io::data_reader
virtual	~data_reader ()
	destructor More...

pni::core::string	filename () const
	get filename More...

void	filename (const pni::core::string &fname)
	set filename More...

virtual void	close ()
	close the file More...

virtual void	open ()
	open file More...

Private Member Functions
void	_parse_file (std::ifstream &stream)
	initial file parseing More...

void	_parse_parameters (std::ifstream &stream)
	parse parameter section More...

void	_parse_data (std::ifstream &stream)
	parse the data section More...

template<typename T >
void	_get_parameter_data (std::ifstream &stream, T &value) const
	read parameter data More...

void	_get_parameter_data (std::ifstream &stream, pni::core::string &value) const
	read string parameter More...

template<typename CTYPE >
void	_read_column (size_t index, CTYPE &array) const
	read column data More...

Static Private Member Functions
static pni::core::type_id_t	_typestr2id (const pni::core::string &tstr)
	type id from type string More...

static column_info	_read_column_info (const pni::core::string &line)
	get ColumnInfo from line More...

static std::vector < pni::core::string >	_read_data_line (const pni::core::string &line)
	read data line More...

Private Attributes
std::map< pni::core::string, std::streampos >	_param_map
	parameter stream positions More...

std::streampos	_data_offset
	offset where real data starts More...

Additional Inherited Members
Public Types inherited from pni::io::spreadsheet_reader
typedef std::vector < column_info >::iterator	iterator
	iterator type More...

typedef std::vector < column_info > ::const_iterator	const_iterator
	const iterator type More...

Protected Member Functions inherited from pni::io::spreadsheet_reader
	spreadsheet_reader ()
	default constructor More...

	spreadsheet_reader (const spreadsheet_reader &)=delete
	copy constructor is deleted More...

	spreadsheet_reader (spreadsheet_reader &&o)
	move constructor More...

	spreadsheet_reader (const pni::core::string &n)
	standard constructor More...

virtual void	_append_column (const column_info &i)
	append a column More...

virtual column_info	_get_column (size_t i) const
	get column information More...

virtual column_info	_get_column (const pni::core::string &n) const
	get column information More...

void	_nrecords (size_t n)
	set number of records More...

Protected Member Functions inherited from pni::io::data_reader
std::ifstream &	_get_stream () const
	get stream More...

void	_set_binary ()
	set binary mode More...

	data_reader ()
	default constructor More...

	data_reader (const pni::core::string &fname, bool binary=false)
	standard constructor More...

	data_reader (data_reader &&r)
	move constructor More...

	data_reader (const data_reader &r)=delete
	copy constructor is deleted More...

data_reader &	operator= (const data_reader &r)=delete
	copy assigment is deleted More...

data_reader &	operator= (data_reader &&r)
	move assignment More...

Detailed Description

FIO files are written by ONLINE a data acquisition and experiment control software used at DESY. FIO files are basically ACII files where data is stored in columns. Thus such files correspond to the family of spreadsheet style files.

Constructor & Destructor Documentation

pni::io::fio_reader::fio_reader ( )

pni::io::fio_reader::fio_reader ( const fio_reader & r )

delete

pni::io::fio_reader::fio_reader ( fio_reader && r )

pni::io::fio_reader::fio_reader ( const pni::core::string & n )

pni::io::fio_reader::~fio_reader ( )

Member Function Documentation

template<typename T >

void pni::io::fio_reader::_get_parameter_data	(	std::ifstream &	stream,
		T &	value
	)		const

private

This template is used internally to extract parameter data from the input stream and store the result in a variable of type T.

Parameters

stream	input stream
value	where to store data

void pni::io::fio_reader::_get_parameter_data	(	std::ifstream &	stream,
		pni::core::string &	value
	)		const

private

Overloaded version of the _get_parameter_data template method to handle string data.

Parameters

stream	input stream
value	string value where to store parameter data

void pni::io::fio_reader::_parse_data ( std::ifstream & stream )

private

Private function which execudes parser code for the data section of the FIO file. It collects all the information about columns present in the file.

Parameters

stream input stream from which to read data

void pni::io::fio_reader::_parse_file ( std::ifstream & stream )

private

This private method runs through the entire file once and calles the appropriate parses.

Parameters

stream input stream from which to read data

void pni::io::fio_reader::_parse_parameters ( std::ifstream & stream )

private

Method parses the parameter section of a file. It sets up the _param_map member variable.

Parameters

stream input stream from which to read data

template<typename CTYPE >

void pni::io::fio_reader::_read_column	(	size_t	index,
		CTYPE &	array
	)		const

private

Private template method to read column data and store it to an array object. If EOF is reached before all data was read an exception will be thrown.

Exceptions

file_error if EOF is reached before end of data

Parameters

index	index of the column in the file
array	instance of the Array template where to store the data

column_info pni::io::fio_reader::_read_column_info ( const pni::core::string & line )

staticprivate

Method retrievs column information from a line.

Parameters

line	string object holding the lines content

Returns: instance of ColumnInfo

std::vector< pni::core::string > pni::io::fio_reader::_read_data_line ( const pni::core::string & line )

staticprivate

Reads a data line and splits the line into its cells. The method returns a vector of Strings where each elements corresponds to a particular cell.

Parameters

line	input line

Returns: vector with cell content as strings

pni::core::type_id_t pni::io::fio_reader::_typestr2id ( const pni::core::string & tstr )

staticprivate

Method converts a FIO type string to a TypeID as provided by libpniio.

Parameters

tstr	type string

Returns: TypeID

template<typename CTYPE >

CTYPE pni::io::fio_reader::column ( const pni::core::string & n ) const

Returns a single column and stores the data into an array object. If the column name does not exist an exception is thrown.

Exceptions

key_error	if column does not exist
file_error	if EOF is reached before end of data

Parameters

n	name of the column

Returns: instance of ATYPE holding the data.

template<typename CTYPE >

void pni::io::fio_reader::column	(	const pni::core::string &	n,
		CTYPE &	c
	)		const

Read a single column and stores the result in an appropriate container. The method assumes that the container is of appropriate size and shape.

Exceptions

key_error	if the requested column does not exist
file_error	in any other case of error

Template Parameters

CTYPE container type

Parameters

n	name of the column
c	instance of CTYPE that will in the end contain the data

size_t pni::io::fio_reader::nparameters ( ) const

Return the number of parameters stored in the file.

Returns: number of parameters

fio_reader& pni::io::fio_reader::operator= ( const fio_reader & r )

delete

fio_reader & pni::io::fio_reader::operator= ( fio_reader && r )

template<typename T >

T pni::io::fio_reader::parameter ( const pni::core::string & name ) const

Return the value of a parameter stored in the FIO file by name.

Exceptions

key_errror if parameter name does not exist

Parameters

name	parameter name

Returns: parameter value as type T

std::vector< pni::core::string > pni::io::fio_reader::parameter_names ( ) const

Returns a vector of Strings holding the parameter names stored in the file.

Returns: parameter names

Field Documentation

std::streampos pni::io::fio_reader::_data_offset

private

std::map<pni::core::string,std::streampos> pni::io::fio_reader::_param_map

private

The documentation for this class was generated from the following files:
