pni::io::tiff::strip_reader Class Reference

reader for strip data in a TIFF file

#include <strip_reader.hpp>

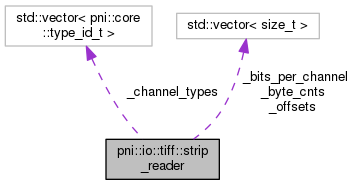

Collaboration diagram for pni::io::tiff::strip_reader:

Public Member Functions
	strip_reader ()
	default constructor More...
	strip_reader (const strip_reader &r)
	copy constructor More...
	strip_reader (strip_reader &&r)
	move constructor More...
	strip_reader (const std::vector< size_t > &offsets, const std::vector< size_t > &byte_counts, const std::vector< size_t > &bits_per_channel, const std::vector< pni::core::type_id_t > &channel_types)
	standard constructor More...
	~strip_reader ()
	destructor More...
strip_reader &	operator= (const strip_reader &r)
	copy assignment operator More...
strip_reader &	operator= (strip_reader &&r)
	move assignment operator More...
template<typename CTYPE >
void	read (size_t c, std::ifstream &stream, CTYPE &data)
	template to read image data of various type More...

Static Public Member Functions
static strip_reader	create (std::ifstream &stream, const ifd &image_dir, const image_info &info)
	create StripReader instance More...

Private Member Functions
template<typename IT , typename CTYPE >
void	_read_interlace (size_t c, std::ifstream &stream, CTYPE &data) const
	template to read interlace data More...

Private Attributes
std::vector< size_t >	_offsets
	array with the file offsets of the strips More...
std::vector< size_t >	_byte_cnts
	array with byte counts for each strip More...
std::vector< size_t >	_bits_per_channel
	number of bits per channel More...
std::vector< pni::core::type_id_t >	_channel_types
	type ids of channel data More...

Friends
std::ostream &	operator<< (std::ostream &o, const strip_reader &r)
	output operator More...

Constructor & Destructor Documentation

pni::io::tiff::strip_reader::strip_reader

(

)

pni::io::tiff::strip_reader::strip_reader

(

const strip_reader &

r

)

pni::io::tiff::strip_reader::strip_reader

(

strip_reader &&

r

)

pni::io::tiff::strip_reader::strip_reader	(	const std::vector< size_t > &	offsets,
		const std::vector< size_t > &	byte_counts,
		const std::vector< size_t > &	bits_per_channel,
		const std::vector< pni::core::type_id_t > &	channel_types
	)

Standard constructor for this class.

Parameters

offsets	vector with strip offsets
byte_counts	vector with byte counts for every strip
bits_per_channel	vector with number of pits per channel
channel_types	vector with TypeIDs for each channel

pni::io::tiff::strip_reader::~strip_reader

(

)

Member Function Documentation

template<typename IT , typename CTYPE >

void pni::io::tiff::strip_reader::_read_interlace ( size_t  c, std::ifstream &  stream, CTYPE &  data  ) const

private

This template method reads image data distributed over several strips. The first template parameter determines the type of the image data to read while T is the type of the target array. The remaining template parameters belong to the array itself and are not of importance here.

Template Parameters

IT	data type used in the image file
CTYPE	container type where the data shoule be stored

Parameters

c	number of the channel to read
stream	input stream from which to read data
data	target container where to store the data

strip_reader pni::io::tiff::strip_reader::create ( std::ifstream &  stream, const ifd &  image_dir, const image_info &  info  )

static

This static factory method creates a StripReader object from the IFD of an image and its ImageInfo structure.

Parameters

stream	input stream from which to read data
image_dir	IFD of the image for which the reader should be created
info	ImageInfo object for the image

Returns

instance of type StripReader

strip_reader & pni::io::tiff::strip_reader::operator=

(

const strip_reader &

r

)

strip_reader & pni::io::tiff::strip_reader::operator=

(

strip_reader &&

r

)

template<typename CTYPE >

void pni::io::tiff::strip_reader::read ( size_t  c, std::ifstream &  stream, CTYPE &  data  )

inline

Template method to read image data stored as strips from a file. The template parameter determines the type of the output array. The method assumes that the shape of the array is already set properly.

Exceptions

type_error

if the image data type is unkown

Parameters

c	number of the channel to read
stream	input stream from which to read data
data	reference to the container where to store the data

Friends And Related Function Documentation

std::ostream& operator<< ( std::ostream &  o, const strip_reader &  r  )

friend

Field Documentation

std::vector<size_t> pni::io::tiff::strip_reader::_bits_per_channel

private

std::vector<size_t> pni::io::tiff::strip_reader::_byte_cnts

private

std::vector<pni::core::type_id_t> pni::io::tiff::strip_reader::_channel_types

private

std::vector<size_t> pni::io::tiff::strip_reader::_offsets

private

---

The documentation for this class was generated from the following files:

• strip_reader.hpp
• strip_reader.cpp
