base clase for CBF readers More...

#include <cbf_reader.hpp>

Inheritance diagram for pni::io::cbf_reader:

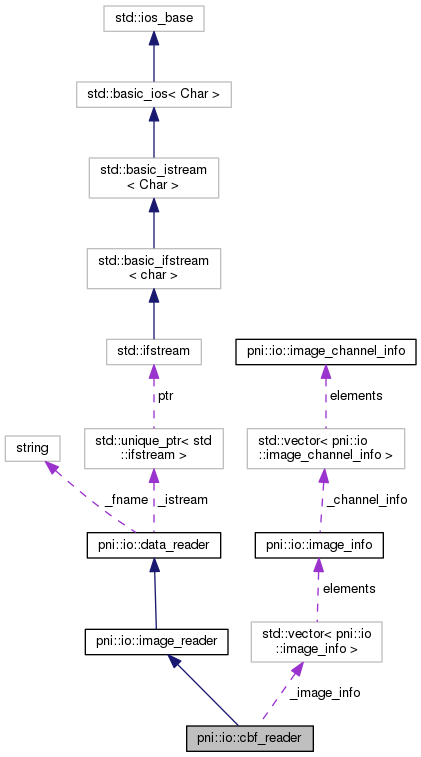

Collaboration diagram for pni::io::cbf_reader:

Public Member Functions
	cbf_reader ()
	default constructor More...

	cbf_reader (const pni::core::string &fname)
	construct reader object More...

virtual	~cbf_reader ()
	destructor More...

	cbf_reader (const cbf_reader &r)=delete
	the copy constructor is deleted More...

cbf_reader &	operator= (cbf_reader &&r)
	move assignment More...

cbf_reader &	operator= (const cbf_reader &r)=delete
	the copy assignment operator is deleted More...

virtual void	close ()
	close the file More...

virtual void	open ()
	open file More...

virtual size_t	nimages () const
	get number of images More...

virtual image_info	info (size_t i) const
	get image info More...

template<typename CTYPE >
CTYPE	image (size_t i, size_t c=0)
	read image More...

template<typename CTYPE >
void	image (CTYPE &array, size_t i, size_t c=0)
	read data from detector file More...

Public Member Functions inherited from pni::io::image_reader
virtual	~image_reader ()
	destructor More...

template<typename ATYPE >
ATYPE	image (size_t, size_t)
	method to read a single channel More...

template<typename ATYPE >
void	image (ATYPE &, size_t, size_t)
	method to read a single image channel More...

Public Member Functions inherited from pni::io::data_reader
virtual	~data_reader ()
	destructor More...

pni::core::string	filename () const
	get filename More...

void	filename (const pni::core::string &fname)
	set filename More...

Private Member Functions
void	_parse_file ()
	parse the file More...

Private Attributes
cbf::vendor_id	_detector_vendor
	string holding the detector vendor ID More...

std::vector< image_info >	_image_info
	info structure for data More...

std::streampos	_data_offset
	store data offset More...

cbf::compression_id	_compression_type
	compression type More...

Additional Inherited Members
Protected Member Functions inherited from pni::io::image_reader
	image_reader ()
	default constructor More...

	image_reader (const image_reader &)=delete
	copy constructor is deleted More...

	image_reader (image_reader &&r)
	move constructor More...

	image_reader (const pni::core::string &fname, bool binary=false)
	standard constructor taking the filename as string object More...

image_reader &	operator= (const image_reader &r)=delete
	copy assignment is deleted More...

image_reader &	operator= (image_reader &&r)
	move assignment operator More...

Protected Member Functions inherited from pni::io::data_reader
std::ifstream &	_get_stream () const
	get stream More...

void	_set_binary ()
	set binary mode More...

	data_reader ()
	default constructor More...

	data_reader (const pni::core::string &fname, bool binary=false)
	standard constructor More...

	data_reader (data_reader &&r)
	move constructor More...

	data_reader (const data_reader &r)=delete
	copy constructor is deleted More...

data_reader &	operator= (const data_reader &r)=delete
	copy assigment is deleted More...

data_reader &	operator= (data_reader &&r)
	move assignment More...

Detailed Description

CBFReader is the base class for all readers of data stored in binary CIF format. Although CBF is standardized by the ICUR the guys from Dectris (the vendor of the Pilatus detector) use a kind of dialect which must be treated in a slightly different way. The field _header_convention in the class indicates whether or not the header is in standard CBF format or in the Dectris dialect.

Reading a CBF file is a two step process:

the header is read and the information stored there kept in in a CIFBinaryHeader object
the binary data is read from the stream using a CBFBinStreamReader object The header information contains enough information to decide which binary reader to use and to construct the data objects which will hold the data read from the file. From such a point of view the header object can be consideres as a factory for the binary readers and the array objects holding the data.

Constructor & Destructor Documentation

pni::io::cbf_reader::cbf_reader ( )

pni::io::cbf_reader::cbf_reader ( const pni::core::string & fname )

The name of the CBFFile is passed as a String object. During instantiation of class the file is parsed. Throws an exception if the flavor of the CBF file cannot be deduced from the header.

Exceptions

file_error if the CBF flavor cannot be deduced

Parameters

fname name of the file

pni::io::cbf_reader::~cbf_reader ( )

virtual

pni::io::cbf_reader::cbf_reader ( const cbf_reader & r )

delete

Member Function Documentation

void pni::io::cbf_reader::_parse_file ( )

private

Parse the file and setup member variables of the class.

virtual void pni::io::cbf_reader::close ( )

inlinevirtual

Reimplemented from pni::io::data_reader.

template<typename CTYPE >

CTYPE pni::io::cbf_reader::image	(	size_t	i,
		size_t	c = `0`
	)

Template Parameters

CTYPE container type for storing data

Exceptions

memory_allocation_error	if container allocation failes
file_error	in case of IO errors

Parameters

i	image number to read
c	channel to read (default = 0)

Returns: instance of CTYPE with image data

template<typename CTYPE >

void pni::io::cbf_reader::image	(	CTYPE &	array,
		size_t	i,
		size_t	c = `0`
	)

Reads a single image from a detector file and stores it in an container of type CTYPE. Ths me

Exceptions

file_error if case of IO errors

Template Parameters

CTYPE	container type holding the image data
SizeMissmatchError	if container and image size do not match

Parameters

array	instance of CTYPE where data will be stored
i	image number
c	channel number

virtual image_info pni::io::cbf_reader::info ( size_t i ) const

inlinevirtual

Return an instance of ImageInfo with the information of image i in the image stack. This is a virtual function which must be implemented by the concrete reader classes.

Parameters

i	index of the image

Returns: vector with ImageInfo objects

Implements pni::io::image_reader.

virtual size_t pni::io::cbf_reader::nimages ( ) const

inlinevirtual

Returns the number of images stored in the file. This methods reflects the fact that many image formats can hold more than one image in a single file (CBF, TIFF). Although this feature is hardly used for experiments it should be taken into account. This is a virtual function which must be implemented by the concrete reader classes.

Returns: number of images

Implements pni::io::image_reader.

virtual void pni::io::cbf_reader::open ( )

inlinevirtual

Opens the file given by filename.

Exceptions

FileError in case of errors

Reimplemented from pni::io::data_reader.

cbf_reader & pni::io::cbf_reader::operator= ( cbf_reader && r )

cbf_reader& pni::io::cbf_reader::operator= ( const cbf_reader & r )

delete

Field Documentation

cbf::compression_id pni::io::cbf_reader::_compression_type

private

std::streampos pni::io::cbf_reader::_data_offset

private

cbf::vendor_id pni::io::cbf_reader::_detector_vendor

private

std::vector<image_info> pni::io::cbf_reader::_image_info

private

The documentation for this class was generated from the following files:
