base class for image readers More...

#include <image_reader.hpp>

Inheritance diagram for pni::io::image_reader:

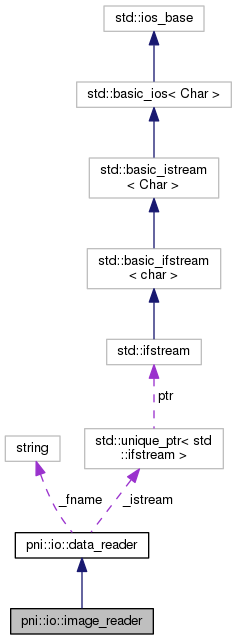

Collaboration diagram for pni::io::image_reader:

Public Member Functions
virtual	~image_reader ()
	destructor More...

virtual size_t	nimages () const =0
	get number of images More...

virtual image_info	info (size_t i) const =0
	get image info More...

template<typename ATYPE >
ATYPE	image (size_t, size_t)
	method to read a single channel More...

template<typename ATYPE >
void	image (ATYPE &, size_t, size_t)
	method to read a single image channel More...

Public Member Functions inherited from pni::io::data_reader
virtual	~data_reader ()
	destructor More...

pni::core::string	filename () const
	get filename More...

void	filename (const pni::core::string &fname)
	set filename More...

virtual void	close ()
	close the file More...

virtual void	open ()
	open file More...

Protected Member Functions
	image_reader ()
	default constructor More...

	image_reader (const image_reader &)=delete
	copy constructor is deleted More...

	image_reader (image_reader &&r)
	move constructor More...

	image_reader (const pni::core::string &fname, bool binary=false)
	standard constructor taking the filename as string object More...

image_reader &	operator= (const image_reader &r)=delete
	copy assignment is deleted More...

image_reader &	operator= (image_reader &&r)
	move assignment operator More...

Protected Member Functions inherited from pni::io::data_reader
std::ifstream &	_get_stream () const
	get stream More...

void	_set_binary ()
	set binary mode More...

	data_reader ()
	default constructor More...

	data_reader (const pni::core::string &fname, bool binary=false)
	standard constructor More...

	data_reader (data_reader &&r)
	move constructor More...

	data_reader (const data_reader &r)=delete
	copy constructor is deleted More...

data_reader &	operator= (const data_reader &r)=delete
	copy assigment is deleted More...

data_reader &	operator= (data_reader &&r)
	move assignment More...

Detailed Description

The image_reader class provides the basic functionality for all other image readers. It opens the file and provides a stream from which to read data. ImageReader objects cannot be copied or copy-assigned. However, they can be moved using std::move.

Like data_reader (from which it is derived) an ImageReader object cannot be instantiated using this class. All constructors and assignment operators are thus protected making them only available to derived classes.

Constructor & Destructor Documentation

pni::io::image_reader::image_reader ( )

protected

pni::io::image_reader::image_reader ( const image_reader & )

protecteddelete

pni::io::image_reader::image_reader ( image_reader && r )

protected

pni::io::image_reader::image_reader	(	const pni::core::string &	fname,
		bool	binary = `false`
	)

explicitprotected

pni::io::image_reader::~image_reader ( )

virtual

Member Function Documentation

template<typename ATYPE >

ATYPE pni::io::image_reader::image	(	size_t	,
		size_t
	)

inline

This method returns an object determined by ArrayType holding the data from channel c (default is 0) of image i in the file. This method must be implemented by all child classes of ImageReader. It is assumed that the method will allocate enough memory and configure the returning object appropriately.

Parameters

i	index of the image in the file
c	(default = 0) image channel to read

Returns: instance of ArrayType holding the channel data

template<typename ATYPE >

void pni::io::image_reader::image	(	ATYPE &	,
		size_t	,
		size_t
	)

inline

This method reads the data from channle c (default = 0) of image i in the file and stores it in an Array template supplied by the user. The array must provide enough space to hold the data otherwise exceptions will be thrown. The addvantage of this method is that it does not waste time with memory allocation. It is thus useful in cases where data from many files of same size must be read.

Parameters

array	array where to store the data
i	index of the image in the file
c	(default = 0) index of the channel from which to read data.

virtual image_info pni::io::image_reader::info ( size_t i ) const

pure virtual

Return an instance of ImageInfo with the information of image i in the image stack. This is a virtual function which must be implemented by the concrete reader classes.

Parameters

i	index of the image

Returns: vector with ImageInfo objects

Implemented in pni::io::tiff_reader, and pni::io::cbf_reader.

virtual size_t pni::io::image_reader::nimages ( ) const

pure virtual

Returns the number of images stored in the file. This methods reflects the fact that many image formats can hold more than one image in a single file (CBF, TIFF). Although this feature is hardly used for experiments it should be taken into account. This is a virtual function which must be implemented by the concrete reader classes.

Returns: number of images

Implemented in pni::io::tiff_reader, and pni::io::cbf_reader.

image_reader& pni::io::image_reader::operator= ( const image_reader & r )

protecteddelete

image_reader & pni::io::image_reader::operator= ( image_reader && r )

protected

The documentation for this class was generated from the following files:
